Urban Water Circulation

Module-type Infiltration Chamber

Summary

Technological factor to reduce rainfall runoff and cultivating groundwater through underground penetration of rainwater by embedding modular infiltration troughs around trees and shrubs

Modular penetrant

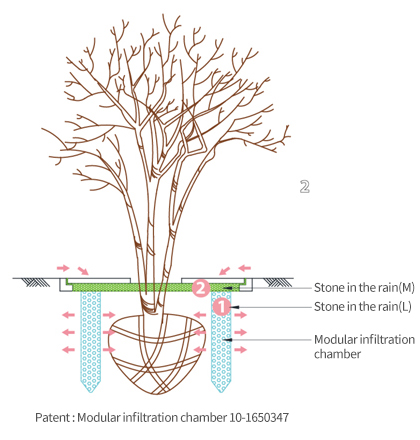

Schematic diagram of modular penetration tube

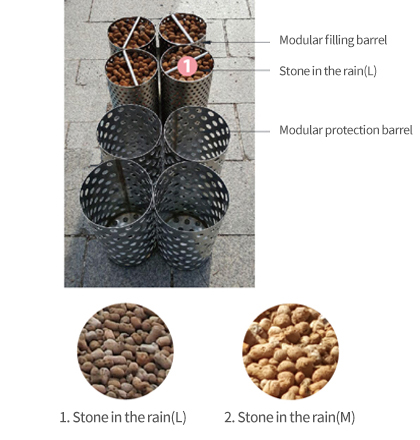

Modular Penetrator Components

Features and Benefits

  • Peak flow reduction, peak time delay
  • Prevention of floating of street trees
  • Improving the growth environment and maintaining smooth tree growth due to underground irrigation
  • Pedestrian safety threat / Resolving cause of inconvenience

Inspection and maintenance

  • Maintenance by preventing clogging that causes functional deterioration (surface / contaminant cleaning)
  • Clean and replace rainwater-retaining stones by regularly removing modular infiltration tanks

Processing efficiency

BOD T-N T-P Runoff reduction(Q) TSS Etc
53% 40~60%
72%		 40~60%
46%		 50~65% 80~100% Zn 80~100%
Pb 80~100%

* Citation of infiltration tanks in the Technical Guidelines for Total Water Pollution Amount Management (2012.8)
* The Practice of Low Impact Development(HUD's Office of Policy Development and Research, 2003)
* Callifornia Fairfacx County - LID BMP Fact Sheet - Dry Wells Fdbruary 28, 2005

Application examples
